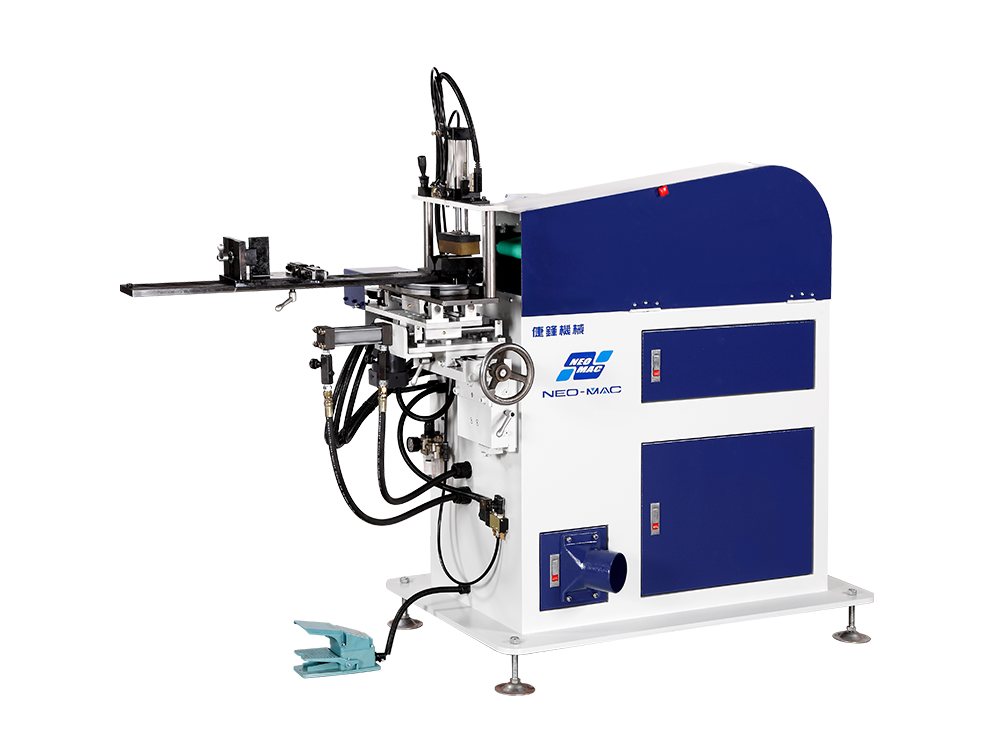

MT-75TN Tube Notching Machine

Product Feature
  • Tube notching machine, Suitable for iron, galvanized steel, aluminum and stainless steel tube. The tube end welded joint match tube diameter after finish grinded and suitable for build, bicycle, yacht occupation.
  • The tube end notch is smooth after finish grinded.
  • Accept order to make the different size grind mold for customer require.



Product Specification
Type MT-75TN
Range of working diameter Ø15 to Ø75mm
Range of working length 200mm~1000mm
Head drive motor 3HP
Hydraulic motor 1HP
Sand belt 125 x 1855 mm(5" x 73")
Machine size ( L x W x H ) 2050 x 750 x 1500mm
Net weight 430 kg
